Implementing Cisco Enterprise Advanced Routing and Services
Read questions, check verified answers and discuss the reasoning. Use reading options to shape your revision, or switch to the simulator for timed practice.
77 questions in this view
An engineer is troubleshooting on the console session of a router and turns on multiple debug commands. The console screen is filled with scrolling debug messages that none of the commands can be verified if entered correctly or display any output. Which action allows the engineer to see entered console commands while still continuing the analysis of the debug messages?
Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

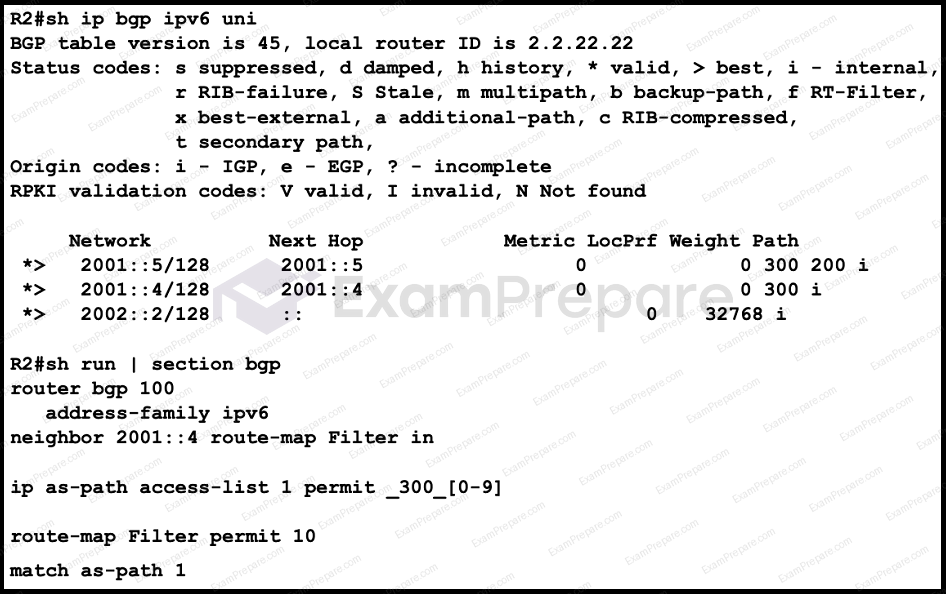

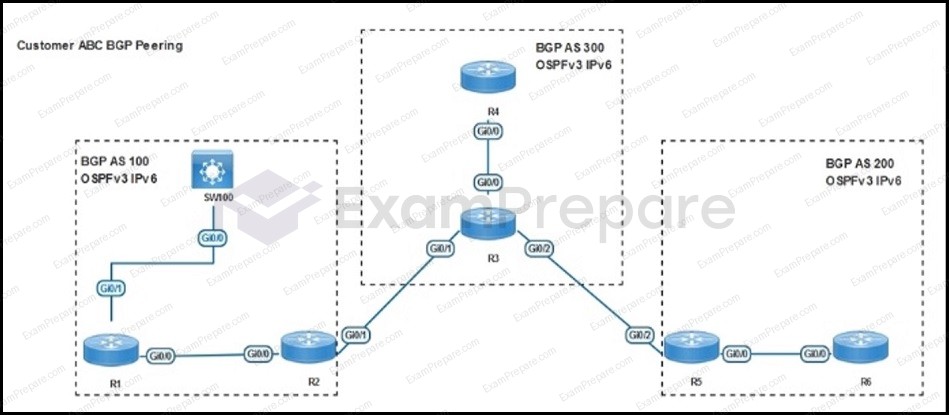

Refer to the exhibit. R2 has been receiving routes from R4 that originated outside AS300. A network engineer configured an AS-Path ACL to avoid adding these routes to the R2 BGP table, but the routes are still present in the R2 routing table. Which action resolves the issue?
Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

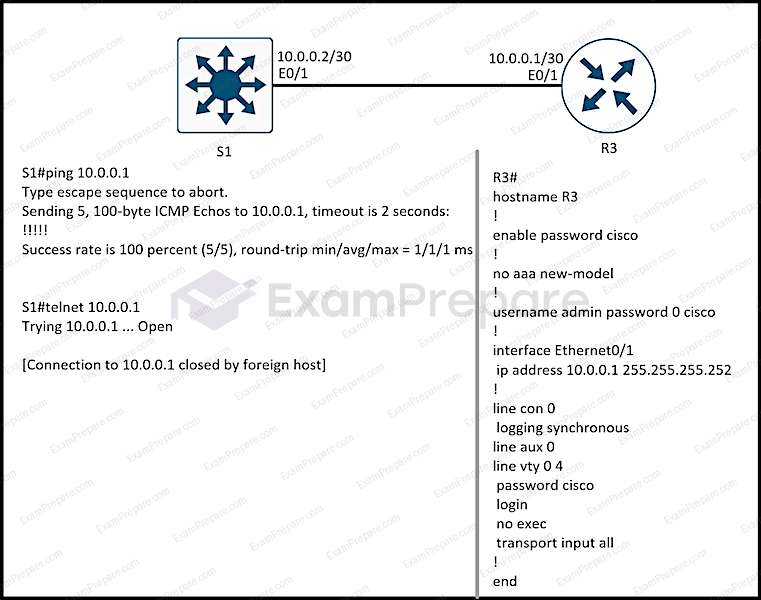

Refer to the exhibit. A network engineer cannot remote access R3 using Telnet from switch S1. Which action resolves the issue?
Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

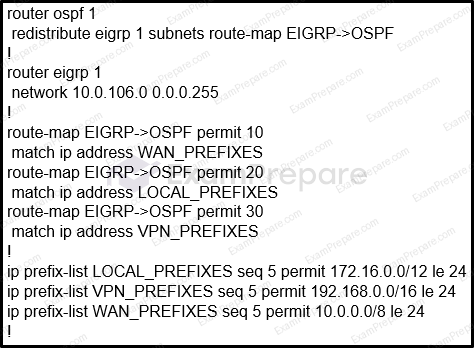

Refer to the exhibit. The network administrator configured redistribution on an ASBR to reach to all WAN networks but failed. Which action resolves the issue?
Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

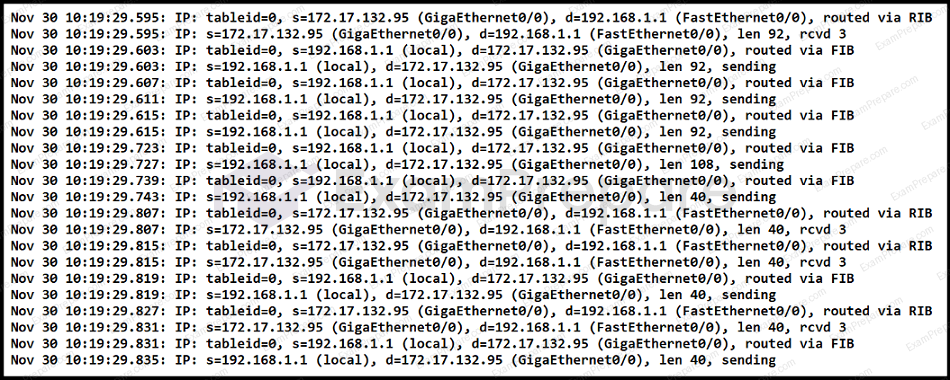

Refer to the exhibit. Users are experiencing slow response times from critical application servers connected to the network. The engineer determined from the console log that there is a DOS attack on the interface GigaEthernet0/0. Which action must the engineer take to resolve the issue?
Select an answer above, then submit your vote. Reading or practicing does not cast a vote.
Which IP precedence value does BFD use to prioritize traffic within an infrastructure device?
Select an answer above, then submit your vote. Reading or practicing does not cast a vote.
