Question 1

Refer to the exhibit.

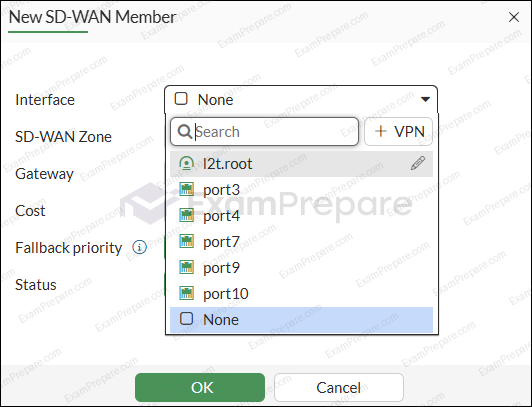

On the FortiGate GUI, an administrator wants to define port6 as new SD-WAN member; however, the interface is not listed as an option in the Interface field.

What are the two most common causes of this situation? (Choose two.)

The interface is already an SD-WAN member.
The interface is used in a firewall policy.
The interface is down.
There is no route allowing traffic through that interface.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 2

Refer to the exhibit.

Which information can be extracted from this SD-WAN monitor map?

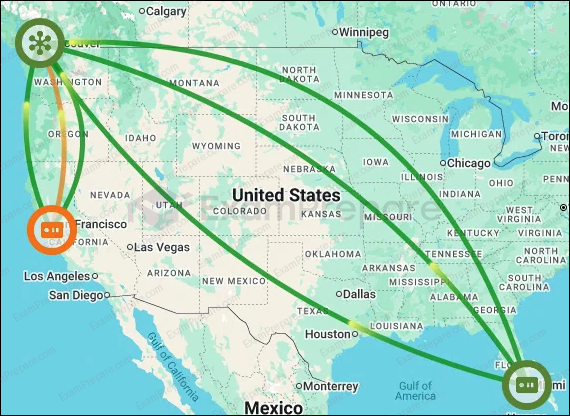

SD-WAN monitor map

This is a hub-and-spoke topology. On one spoke, one member is out-of-sla for at least one health check.
The map shows three SD-WAN devices; one is designated as a data center. One FortiGate device is unhealthy.
The map shows two SD-WAN devices and one health-check server. One SD-WAN device has a dead member.
This is a hub-and-spoke topology. On the hub, one member is out-of-sla for at least one health check.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 3

Which statement correctly describes what happens when traffic matches the implicit SD-WAN rule?

FortiGate flags the session with vwl-0 .
FortiGate steers the traffic through any available SD-WAN member.
FortiGate drops the traffic flow.
The session information output displays no SD-WAN service ID.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 4

Refer to the exhibits.

An SD-WAN rule status and the routing table of a FortiGate device are shown.

An administrator wants to understand the expected behavior for traffic that matches the SD-WAN rule, at the time the output was collected.

Based on the exhibits, which behavior can the administrator expect for traffic that matches the SD-WAN rule?

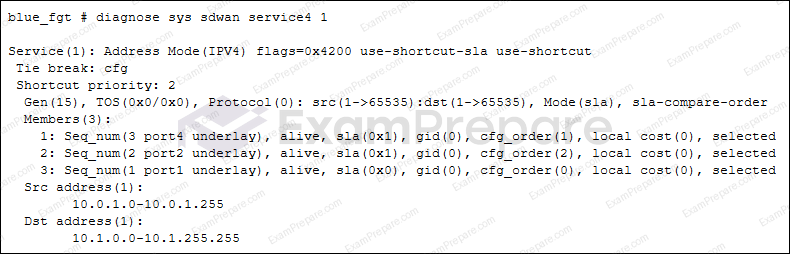

SD-WAN service status

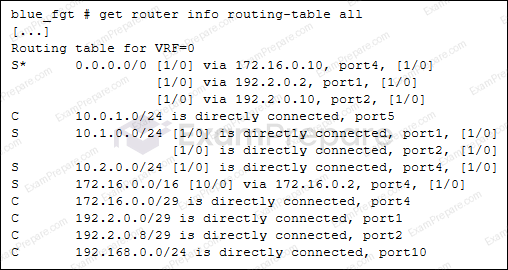

Device routing table

The traffic will be routed over port2.
The traffic will be routed over port4.
The traffic will be load balanced across the three members.
The traffic will be routed over port1.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 5

The administrator configured an SD-WAN rule to steer traffic by application and performed the necessary configuration at the system and firewall policy levels. There is a firewall policy to route the test traffic flow and the necessary routes are available.

Place the actions in the order that FortiGate performs them when it receives a traffic flow for a destination IP address it has not received traffic from before.

Select an action in the left column and drag it into blank position in the column on the right.Place the four correct actions in order, placing the first action in the first position at the top of the column. Once you place an action, you can move it again if you want to change your answer before moving to the next question. You need to drop four actions in the work area.

Select and drag the screen divider to change the viewable area of the source and work areas.

Between traffic reception and traffic forward

Question 6

Refer to the exhibit.

Which SD-WAN rule and interface uses FortiGate to steer the traffic from the LAN subnet 10.0.1.0/24 to the corporate server 10.2.5.254?

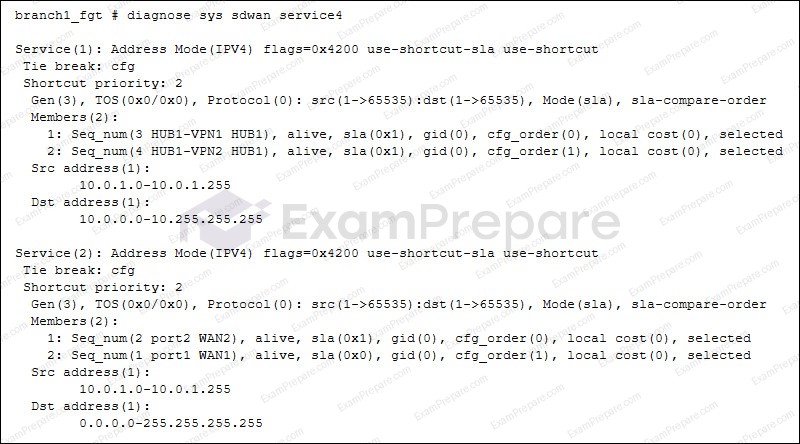

SD-WAN services

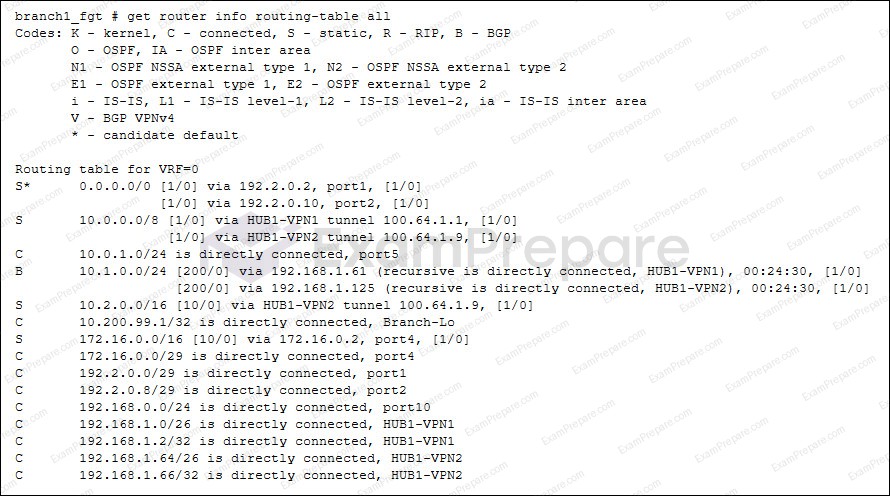

FortiGate routing table

SD-WAN service rule 1 and interface HUB1-VPN2
SD-WAN service rule 1 and HUB1-VPN1 or HUB1-VPN2
SD-WAN service rule 1 and interface HUB1-VPN1
SD-WAN service rule 2 and interface port2

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.
