Network Campus Access Associate Practice Questions & Answers • ExamPrepare

Question 1

You need to create a virtual stack using CX 6300M 24G. Choose the correct statement for this scenario with reserved interfaces for auto-stacking.

ports 27 and 28
ports 25 to 28
ports 23 and 24
ports 25 and 26

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 2

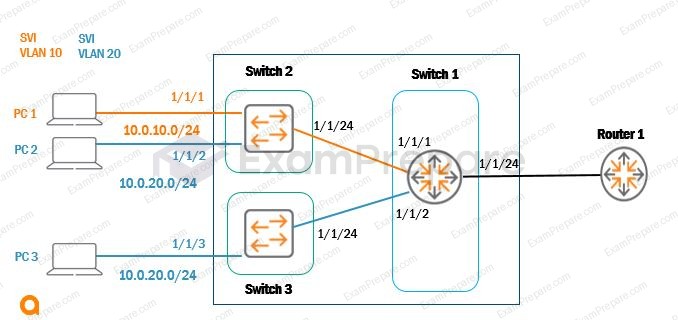

Refer to the exhibit.

Based on the given topology, what would be a valid configuration for Switch 1 port 1/1/2 to enable traffic to PC3, if an unmanaged switch is connected between PC3 and Switch 1?

int 1/1/2, vlan native 20
int 1/1/2, untagged vlan 20
int 1/1/2, trunk allowed vlan 20
int 1/1/2, vlan access 20

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 3

Which cable type is best used for short copper connections between network devices in the same rack?

Power cord
Single Mode fiber optic cable.
CAT6a Ethernet patch cable.
Multimode fiber optic cable.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 4

Which detail should you look for when you review a floor plan as part of a network design?

The region or campus where the floor plan is from.
The total square footage.
The number of fire exits.
The location of elevators.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 5

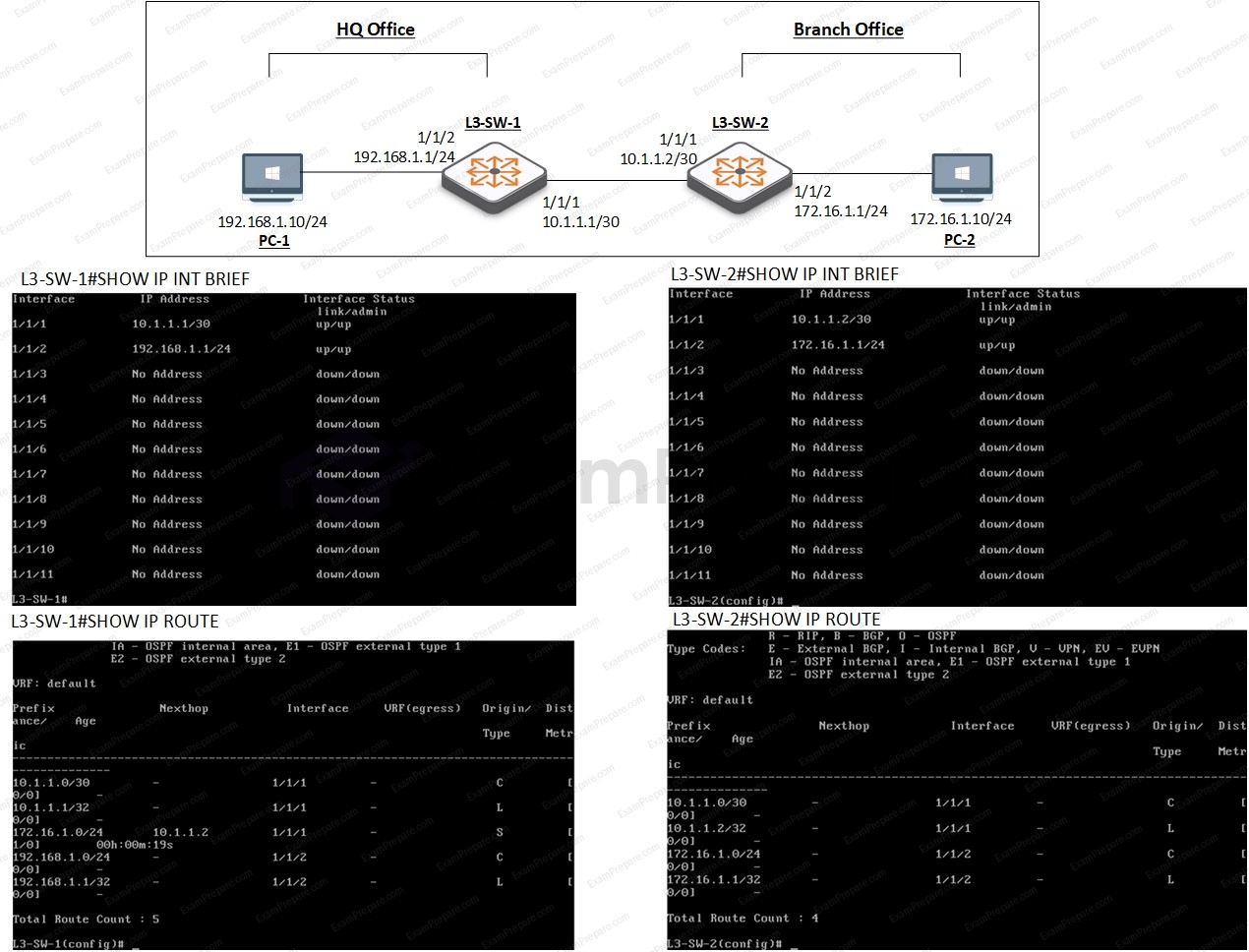

You have been asked to troubleshoot failed connectivity between a local subnet in the HQ Office with 522 employees and a remote subnet in the Branch Office. PC1 is unable to ping PC2.

Use the provided topology and show command output to identify the reason for the failure:

On Branch Office L3-SW-2 – The switch does not have a static route to the HQ Office Local Subnet.
On HQ Office L3-SW-1 - The switch does not have a static default route to the internet.
On HQ Office L3-SW-1 - There is no route to the Branch Office.
On Branch Office - L3-SW-2 – There is no Layer 3 SVI configured in the correct subnet.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 6

Which detail can the site view in HPE Aruba Networking Central show?

Alert severity matrix
Performance optimization recommendations
Application performance graph
Wireless channel map

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.
