Question 1

A network is configured with two 2930F switches as the aggregation layer. Each 2930F switch has ten connections. The network has twenty 2530 access switches connected to both aggregation switches with 1Gb RJ45. Your task is to replace the aggregation switches with CX 6200 models.

In this scenario, which configuration would provide redundancy using two ports on the access switches to the aggregation layer?

Create VSF on the CX 6200 and use stacking with the 2530.
Create a lag on the 2530 to connect to both CX 6200 switches.
Create VSF on the CX 6200 and a lag for CX 6200 and 2530.
Create a single domain VSF for CX 6200 and 2530.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 2

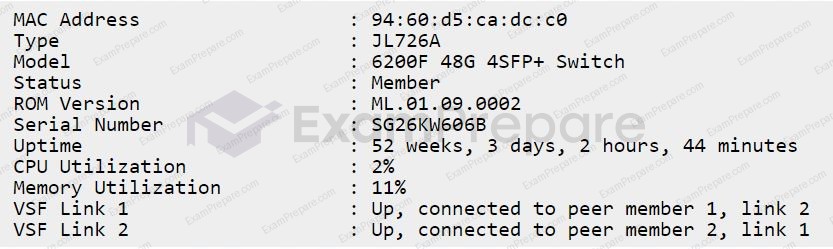

In the given output:

Which statement is true?

In the event of VSF failure, the switch would become a Conductor.
In the event of VSF failure, the switch would become a Standby.
The CX 6200F switch is part of a VSF ring topology.
The CX 6200F switch is part of a VSF chain topology.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 3

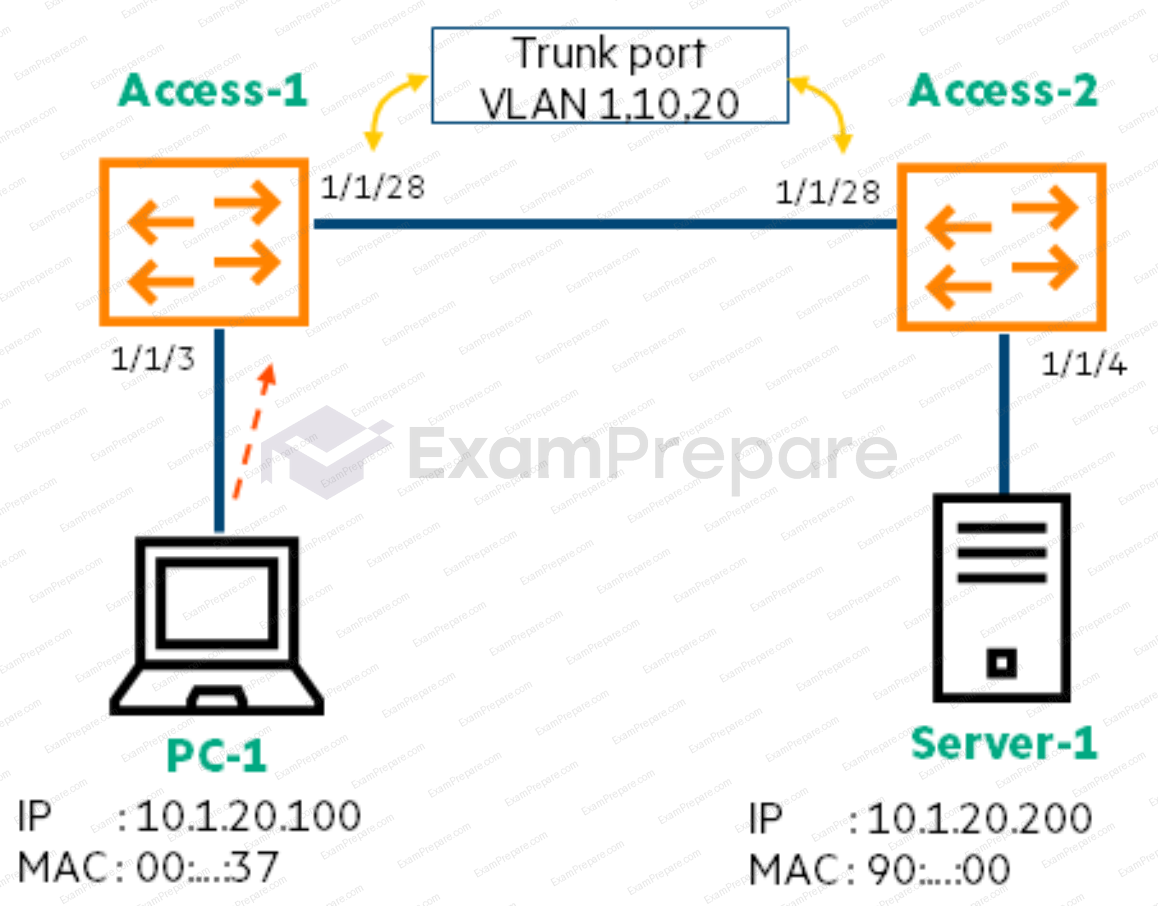

Refer to the diagram below.

After a recent network change, the helpdesk reports that some users could not connect to the print server, Server-1, which is in VLAN 20. After further investigation, you find that only devices directly connected to Access-2 are affected.

Which part of the network should you investigate?

The link status of Access-2 port 1/1/28.
Subnet mask on clients connected to Access-2.
The configured VLAN on Access-2 port 1/1/4.
Allowed VLANs between access switches.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 4

You have deployed new CX 6100 switches with LLDP enabled.

What information can you expect to see from the neighbor switch when you issue command:

show lldp neighbor-info <interface-id>?

Neighbor chassis MAC address
Neighbor switch uptime
Neighbor chassis serial number
Neighbor switch port transceiver type

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 5

While deploying new HPE Aruba Networking CX switches on the customer site, which statement is true for neighbor switch discovery on the OS-CX?

Link Layer Discovery Protocol is enabled by default globally.
Link Layer Discovery Protocol needs to be enabled per interface level.
Link Layer Discovery Protocol needs to be enabled globally.
Link Layer Discovery Protocol is enabled by default per interface level.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 6

Select the correct order for routing protocol administrative distance with the most preferred one on the top.
