Question 1

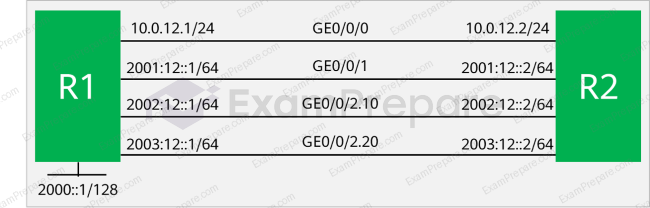

R1 and R2 use directly connected interfaces to establish an EBGP peer relationship. R1 imports 2000::1/128 to BGP. By default, the next hop address of the route from R2 to 2000::1/128 is ______.

Question 2

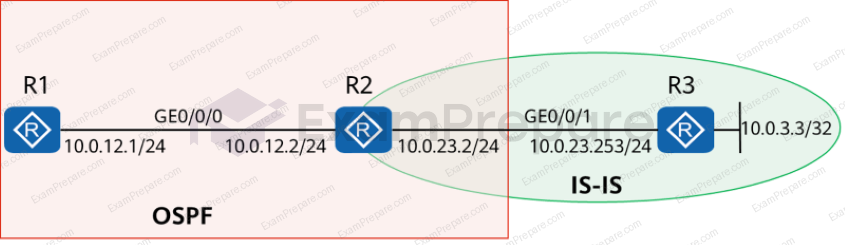

On the network shown in the figure, OSPF is deployed on R1 and R2, and OSPF is enabled on GE0/0/1 of R2. IS-IS is deployed on R2 and R3. To enable R1 to obtain the route to 10.0.3.3/32, IS-IS routes are imported into OSPF on R2. In this case, the FA in the Type 5 LSA generated by R2 is _____.

Question 3

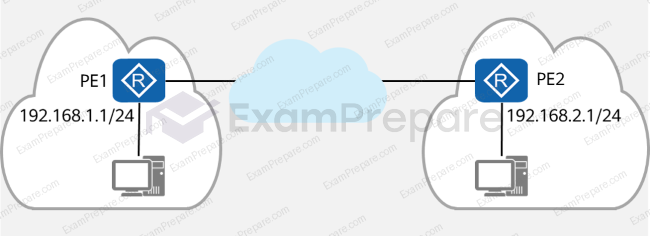

The figure shows the logical network architecture of a migration project. The purpose of the migration is to enable terminals in different geographical locations to communicate with each other, and deploy the gateway of the terminals on the PE. After the migration is complete, which of the following methods can be used by network engineers to preliminarily check the network connectivity?

On PE1, using 192.168.1.1 as the source address to ping 192.168.2.1
On PE1 and PE2, checking whether there are routes to each other's network segment in the routing tables
Configuring NQA on PE1 and PE2, with the destination address being the IP address of each other
On PE1 and PE2, checking whether the ARP table contains the ARP entry of the peer network segment

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 4

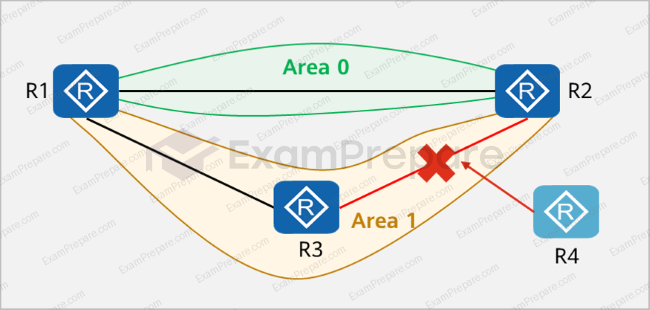

The figure shows the logical network architecture of a migration project. The purpose of the migration is to add network device R4 between R2 and R3. OSPF runs between network devices. After the physical network is connected, a network engineer incorrectly imports the backup configuration of R3 to R4 during the migration. Given this, which of the following statements are true?

An OSPF neighbor relationship can be established between R2 and R4.
The OSPF neighbor relationship between R1 and R2 is not affected.
An OSPF neighbor relationship can be established between R3 and R4.
An OSPF neighbor relationship can be established between R1 and R3.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 5

On the network shown in the figure, the DHCP server function is enabled on GE0/0/0 of R2, and the address pool is an interface address pool. When GE0/0/0 and GE0/0/1 of R1 function as DHCP clients, only one interface can obtain an IP address by default.

TRUE
FALSE

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 6

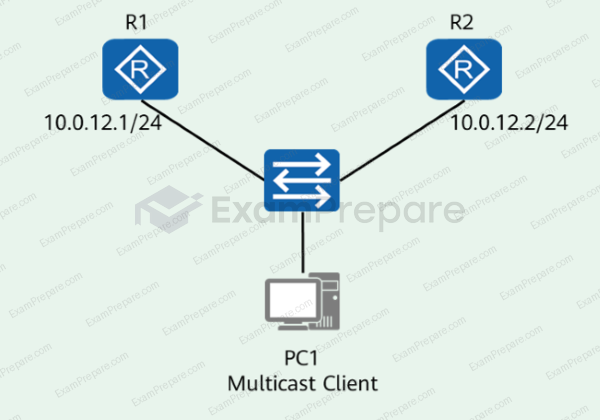

A network engineer draws a schematic diagram of a multicast network (shown in the figure) during troubleshooting. R1 and R2 run IGMP version 2 and use PIM-SM as the multicast routing protocol. The default settings are used for other parameters. Given this, the DR on the multicast network is _____. (Enter the device ID, for example, R1.)
