Question 1

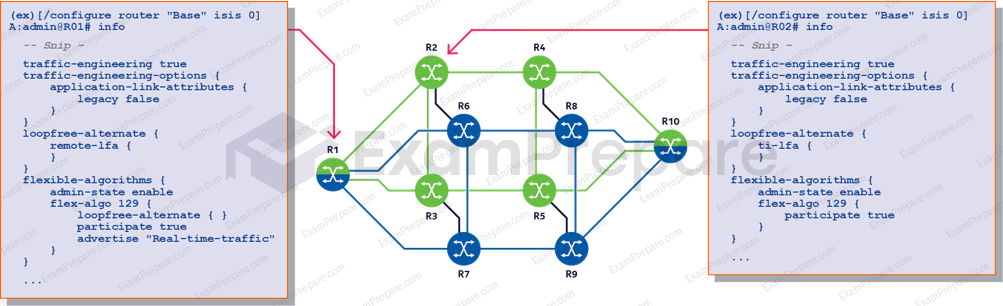

Consider the exhibit. Which of the following statements about fast re-route for flex-algo instance 129 is TRUE?

Only standard LFA is enabled on router R1; fast re-route is not enabled on router R2.
Only standard LFA is enabled on both routers R1 and R2.
Standard LFA and remote-LFA are enabled on router R1; fast re-route is not enabled on router R2.
Standard LFA and remote-LFA are enabled on router R1; standard LFA and TI-LFA are enabled on router R2.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 2

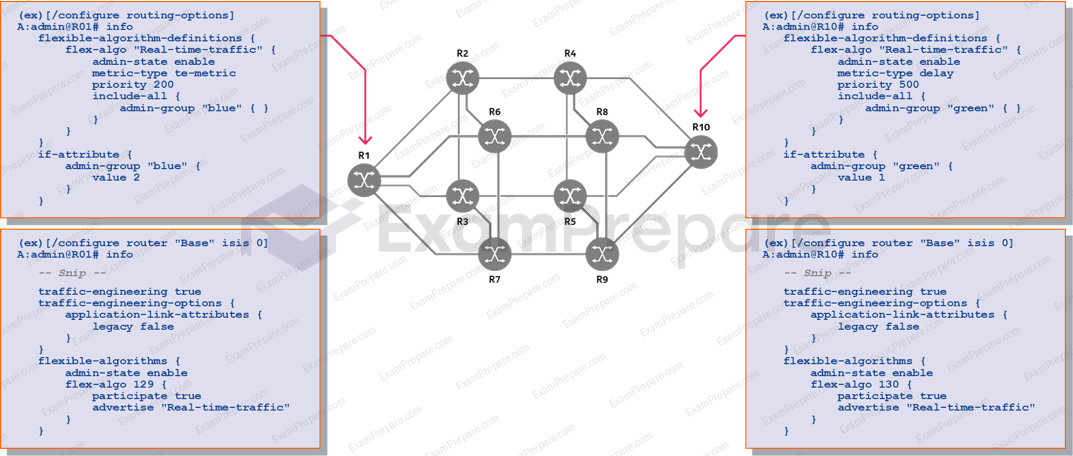

Consider the exhibit. Based on the configuration shown for routers R1 and R10, what valid flex-algo definitions exist in the network?

No valid flex-algo definitions, because of the conflicting parameters.
One valid flex-algo definition, using delay as the link metric and including green links.
One valid flex-algo definition, using te-metric as the link metric and including blue links.
Two valid flex-algo definitions, one uses te-metric as the link metric and includes blue links and the other uses delay as the link metric and includes green links.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 3

In which of the following aspects does the configuration of flex-algo LSPs NOT have an advantage over the configuration of SR-TE LSPs?

List of link-metric types available to choose from
Label stack size of the encapsulated data packets
List of traffic-engineering constraint types available to choose from
Whether it is necessary to configure each LSP explicitly and specify its own set of traffic-engineering constraints

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 4

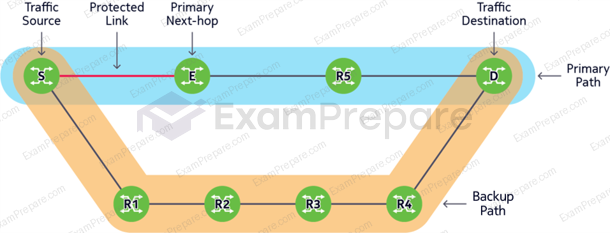

Consider the exhibit. For any of the LFA methods to work properly, there must be a router in the backup path that will forward traffic addressed to the destination without sending it back to the source. Which of the following statements describes the way D-LFA selects such a router?

It selects an immediate neighbor.
It selects a remote router, reachable through a tunnel defined by a single Node-SID.
It selects a remote router, reachable through a tunnel defined by a Node-SID and one or two Adjacency-SIDs.
It can select an immediate neighbor or a remote router, as long as the backup path coincides with the path that will become active after IGP reconvergence.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 5

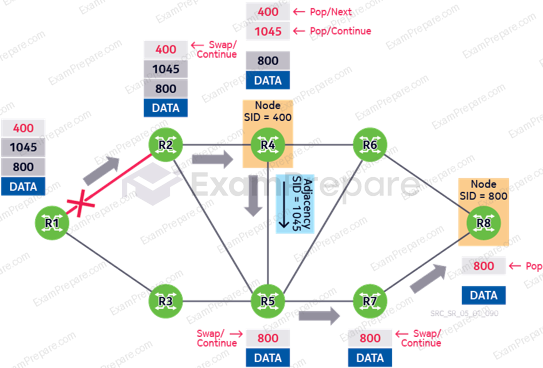

The exhibit presents packets being transmitted inside an LSP’s multi-segment primary path going from router R1 to router R8. The LSP also has a standby secondary path, and Seamless-BFD has been enabled on the primary path. The link between routers R1 and R2 fails, and fast re-route (FRR) is triggered. As a result, router R1 forwards the packets to router R3 and adds the proper FRR encapsulation to reach which router?

To reach router R2, which is the LSP’s intended next-hop.
To reach router R5, which is the shortest way to go back to the original path.
To reach router R4, which is the tail-end of the active segment.
To reach router R8, which is the tail-end of the LSP.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.

Question 6

Which of the following statements about segment routing fast re-route is FALSE?

Fast re-route typically protects the active segment of a tunnel, but under certain conditions it can protect an end-to-end multi-segment tunnel instead.
The D-LFA method fails when there are no routers in the intersection of the Extended P-Space and the Q-Space.
R-LFA adds fewer SIDs to the data packet label stack than D-LFA.
The parameter “max-sr-frr-labels” limits the number of labels that TI-LFA can add to the data packet encapsulation.

Select an answer above, then submit your vote. Reading or practicing does not cast a vote.
